Pro-Ject Wallmount It 3 Single-Shelf Wall Mount - Black

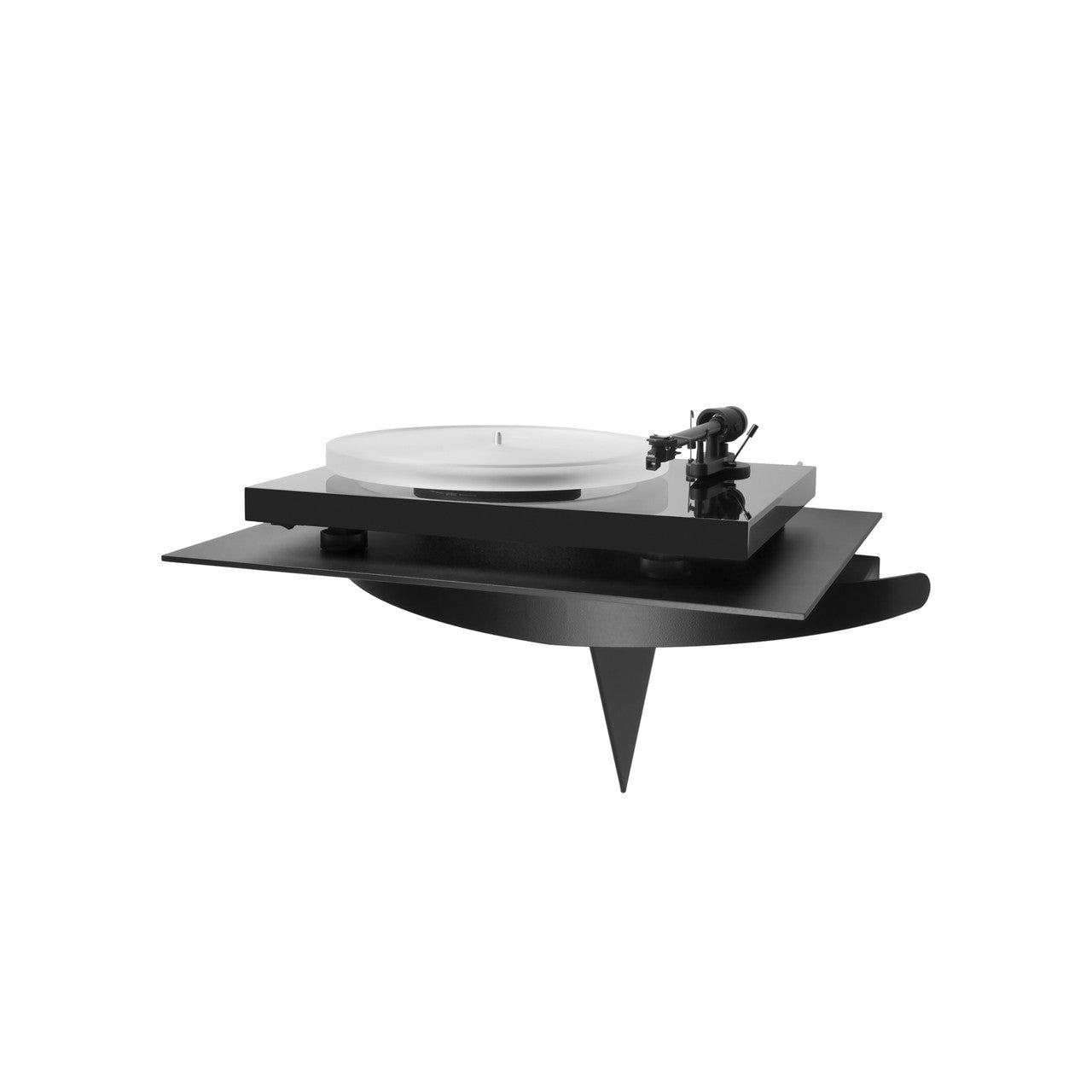

The Wallmount it 3 — The One That Takes a Full-Size Turntable

The largest wall mount Pro-Ject builds for a turntable: 520 x 450 mm of usable surface, against the 460 x 355 mm of the models below it. That is roughly 27% more area, and it is the only reason to choose this one.

Plenty of turntables simply will not sit safely on a smaller shelf. A wide plinth, or feet that splay outside it, and suddenly a 460 mm board has a deck overhanging the front edge.

Size First, Everything Else Second

Measure Across the Feet

The measurement that matters is not the plinth but the footprint of the feet, which on many designs sit wider and further back than the cabinet above them. A turntable whose feet reach past the shelf is not supported, whatever the plinth is doing.

Depth catches people out more often than width. At 450 mm this board takes decks that a 355 mm shelf leaves hanging over the front — which is exactly where you do not want a tonearm.

The Frame

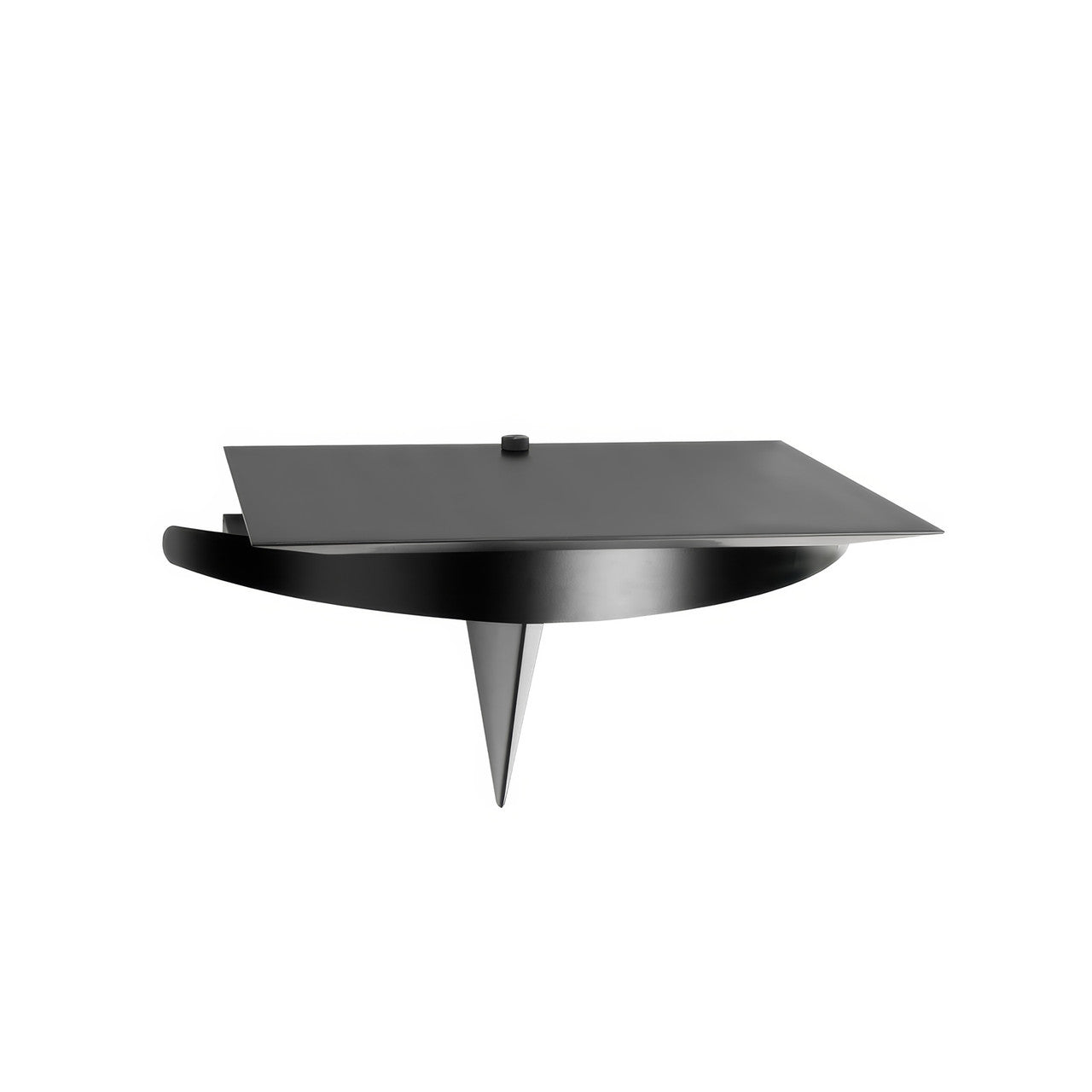

Rigid steel frame construction with height-adjustable spikes, 635 x 290 x 455 mm overall, matt black, and a maximum load of 30 kg — about 66 pounds. The load rating is the same across Pro-Ject's range; what changes here is the area it is spread over.

Which Wall Do You Have?

Pro-Ject recommends installing it "on solid walls, such as Brick." There is no damping built into the frame, so the wall is doing that half of the job — which is a reasonable trade when the wall is masonry and a poor one when it is not.

With the widest board in the range on the largest bracket, the fixings matter more than ever. Establish what is behind the plaster before ordering, not on the day you drill.

Who Is the Wallmount it 3 Best For?

• Your turntable is a big one — 520 x 450 mm is the largest surface in the range, and often the deciding factor
• Your deck is deep front to back — 450 mm of depth against the 355 mm of the smaller models
• Your floor is suspended timber — the reason to go on the wall in the first place
• You have wall to spare — this is 635 mm across, so it needs a clear run
• Your wall is studs and plasterboard — this model is specified for masonry; the Wallmount it 5 is the damped one for lighter walls

How Do You Install It?

Fix the wall plate into masonry, check it for level, and mount the board. Set the spikes until the surface is true, then level the platter rather than the shelf. With a board this size it is worth checking level in both directions before the turntable goes on.

Pairs Well With

What most owners fit alongside a wall mount.

• Isolation components — for what goes between the shelf and the turntable
• Cartridge alignment tools — for releveling and checking the arm afterward
• Stylus force gauges — re-check tracking force after the turntable moves
• Tonearm lifters — a wall shelf is harder to reach across than a rack

Frequently Asked Questions

Will my turntable fit?

The surface is 520 x 450 mm, the largest Pro-Ject offers. Measure your deck across the feet in both directions; depth is what usually rules a smaller shelf out.

What kind of wall does it need?

Solid masonry such as brick. The frame has no integrated damping — the Wallmount it 5 is the model built for stud and plasterboard construction.

Does the larger shelf carry more weight?

It does not. Maximum load is 30 kg across the range. What the larger board gives you is area, so a big turntable is properly supported rather than overhanging.

How much wall does it need?

635 mm across and 455 mm out from the wall. Check the run of clear wall before ordering, particularly if there is a doorway or a corner nearby.

Does it need leveling afterwards?

Yes, and on a board this wide check both axes. The adjustable spikes are there for it; level the platter itself rather than the shelf surface.
